Vapor - Air 5200
High - capacity under - the - duct operation, humidifiers up to 5,200 sq ft. in a tightly constructed home.
Operation

The Vapor - Air 5200 uses the proven, patented Vapor Wheel (R) principle dry air is directed into unit by the air deflector and is forced through the saturated media pad which ratates through the water reservior. the humidified air is then evenly distributed through the furnace duct system.

Construction:

Clear polycarbonate, injection molded reservior provides easy inspection and corrosion resistance.

Installation:

The Vapor-Air 5200 is designed for use with warm air furnaces -- oil, gas, or electric. It mounts easily on the primary or secondary horizontal hot air duct.

Specifications:
  • Electrical: 24V
  • Size: 12 1/4" deep x 16" wide x 8 1/4" high
  • Unit Weight: 4.6 lbs.
  • Water Connection: 1/4" O.D. tubing
  • Overflow Drain Connection (optional): 7/16" ID rubber or plastic tubing
Capacity
Duct Static Presurre
Temp. 0.2" S.P.
Fahrenheit Gal / 24 Hr
180 29.25
160 25.25
140 21
120 17
100 13

Features:
  • Does not require UL approval
  • Does not waste water - all the water that goes into the unit is used to humidify the home.
  • No drain required
  • Quick disconnect on water line.
  • Convertible wall / duct 24V humidstat.
  • 24V transformer.
  • High - torque media motor with slip clutch feature helps prevent motor burnout Rotates at 1.25 rpm for higher moisture saturation.
  • Mounting frame with turn style buttons.
  • Drain plug for easy servicing.
  • Clear see-through case for convenient inspection.
  • Low operational cost.

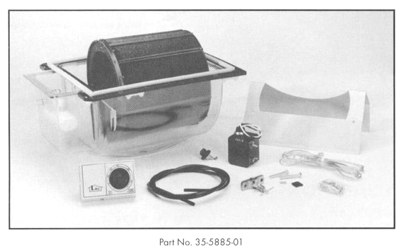

    All components necessary for normal installation, including:
  • humidatat,
  • transformer,
  • 10' electrical wire,
  • 10' water supply tubing,
  • self piercing saddle valve assembly,
  • mounting frame,
  • air deflector,
  • template,
  • Installation instructions
  • and separate owner's manual,
  • packed within carton.
