The vapor - Air 3800 is an automatic, low voltage, fixed pad, bypass humidifier. The solenoid opens and closes the water supply. The Vapor-Air 3800 operates on the difference of air pressure between the warm air plenum and the cold air return.

Constant flushing of water acrossthe stationary media pad during operation assures minimum mineral build up requiring less frequent service. By circulating dry air from the furnance pleunum and forcing it through the water saturated media, the air becomes properly humidified and distributed throughout the home through the furnace duct system.

Specifications
• Floor drain: Required
• Size: 8 1/2" deep x 14 1/2" wide x 15" high
• Unit Weight: 5.25 lbs.
• Water Connection: 1`/4" O.D. tubing
• Drain Connection: 7/16" I.D. plastic tubing
• Bypass Duct Size: 6"dia
• Solenoid: 24V
• Water Input Rate: 4 GPH
• Drain Rate: 3.2 GPH

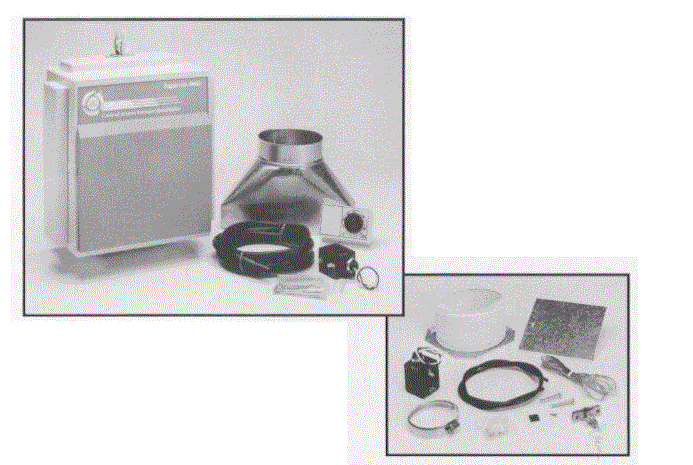

Components Packed in Carton
• Humidistat
• Transformer
• 7/16" Plastic Tubing
• 3 1/4" x 123" Round Sheet Metal Reducing Boot
• Hardware for Mounting
• Mounting Template
• Installation Instructions
• Owner's Servicing / Maintenace Manual

Components: Installation Kit
• 10' Standard Electrical Wire
• 36" Flexible Bypass Hose
• 10' Water Supply Tubing
• Self Piercing Saddle Valve Assembly
• Collar with Damper

Features
• Does not require UL approval
• Convertible wall/duct 24V humidistat
• 24V transformer
• Uniquely designed distribution trough with three water feed compactments for efficient, uniform water distribution
• Reversible - warm or cold air mount
• Easy to service and maintain - no water to diconnect, no tools required Simply lift off the front panel and snap put media pad
• The non-flaking media pad is coated aluminum mesh for maximum capacity
